Specs
Details
Platform
Model Name

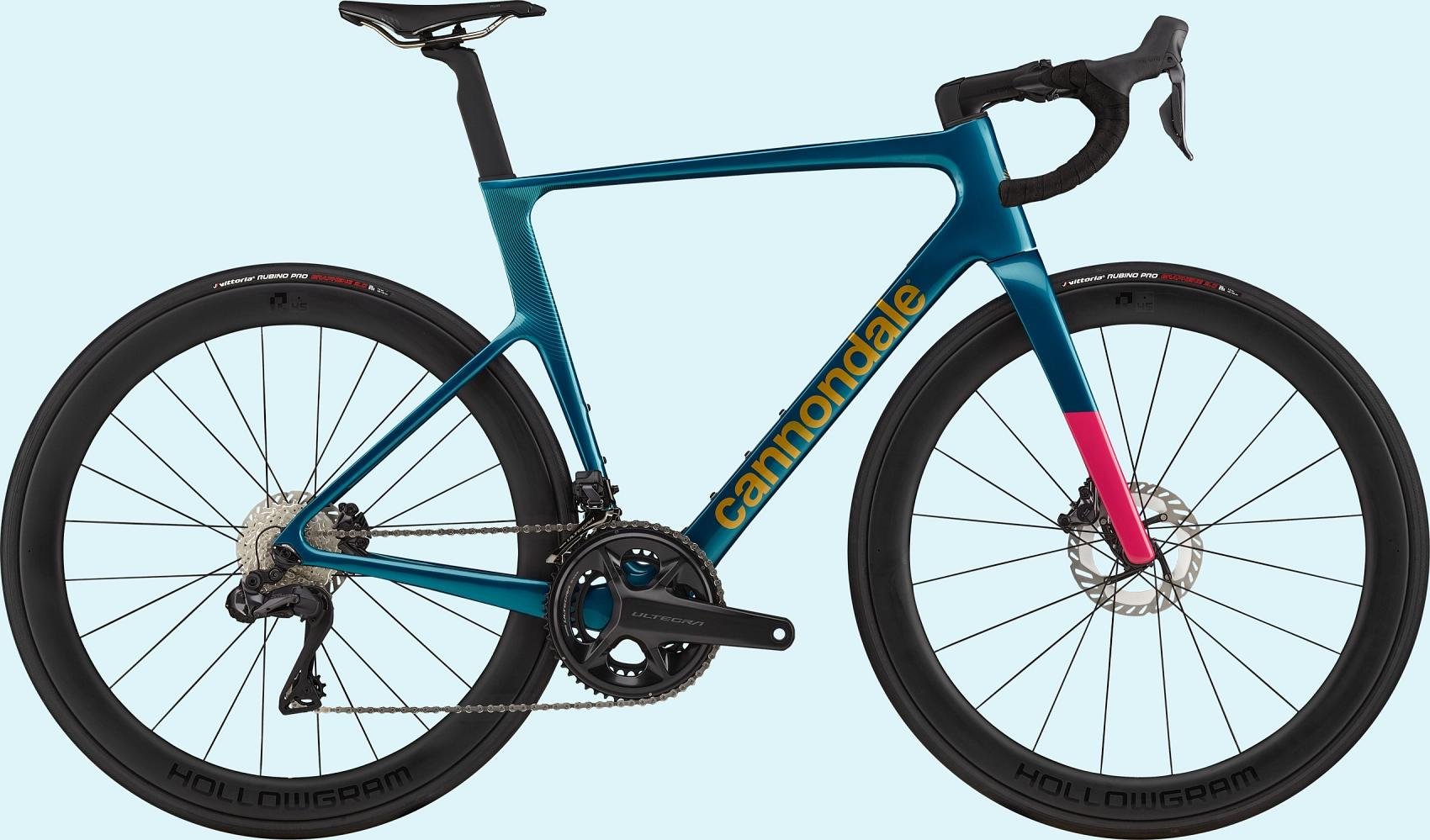

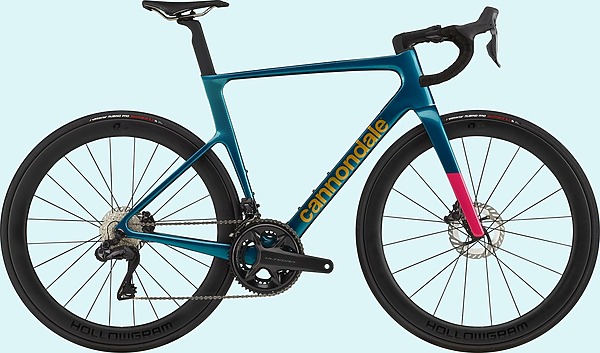

SuperSix EVO 2
Model Code
C11453U
Frameset
Frame
SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12×142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Fork
SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8″ to 1-1/4″ Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Headset
Integrated, 1-1/8″ – 1-1/4″
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150
Front Derailleur
Shimano Ultegra Di2 R8150
Shifters
Shimano Ultegra Di2 R8170, wireless, 2×12
Chain
Shimano Ultegra, 12-speed
Crank
Shimano Ultegra R8100, 50/34
Rear Cogs
Shimano Ultegra R8100, 11-30, 12-speed
Bottom Bracket
Shimano BB-RS500, BSA
Brakes
Brakes
Shimano Ultegra R8170, 160/140mm MT800 rotors
Brake Levers
Shimano Ultegra Di2 R8170 hydraulic disc
Wheels
Rims
HollowGram R 45, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready
Spokes
Formula Grand Forza, Double Butted, straight-pull
Tire Size
25
Wheel Size
700
Hubs
(F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x142mm centerlock
Tires
Vittoria Rubino Pro Bright Black, 700x25c, reflective strip
Components
Handlebar
Vision Trimax Carbon Aero
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Prologo Dimension STN NDR, Stainless Steel Rails
Seatpost
Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
Connectivity
Wheel Sensor
Cannondale Wheel Sensor
