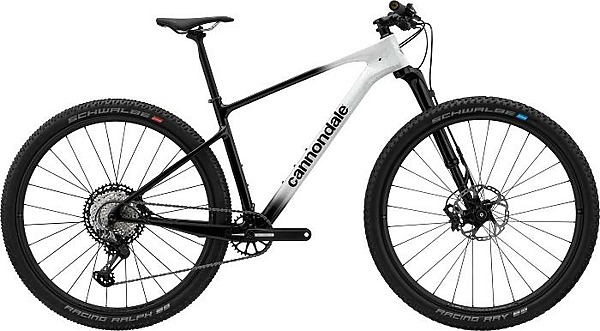

Plattform
Scalpel HT
Modell
Scalpel HT Hi-MOD 1
Modellnummer
C25201U
Rahmenset
Rahmen
Scalpel HT Hi-MOD Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
Gabel
Lefty Ocho 120 Carbon, 110mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 50mm offset
Steuersatz
Integrated, 1-1/8 to 1.5″, sealed angular contact bearings
Antrieb
Schaltwerk
Shimano XTR
Schalthebel
Shimano XT, 12-speed
Kette
Shimano XT, 12-speed
Kurbel
HollowGram, BB30 83MTB, OPI SpideRing, 34T, 55mm chainline
Kassette
Shimano XT, 10-51, 12-speed
Bottom Bracket
Cannondale Alloy PressFit30
Bremsen
Bremsen
Shimano XT hydraulic disc, 180/160mm XT rotors
Bremshebel
Shimano XT hydraulic disc
Laufräder
Felgen
HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm IW, tubeless ready
Speichen
DT Swiss Competition Race, straight-pull
Reifen
(F) Schwalbe Racing Ray EVO, 29 x 2.25″, SnakeSkin, Addix Speedgrip, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29 x 2.25″, SnakeSkin, Addix Speed, tubeless ready
Reifengröße
2.25
Reifendimension
29
Naben
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mm
Vorderreifen
Schwalbe Racing Ray EVO, 29 x 2.25″, SnakeSkin, Addix Speedgrip, tubeless ready
Hinterreifen
Schwalbe Racing Ralph EVO, 29 x 2.25″, SnakeSkin, Addix Speed, tubeless ready
Komponenten
Lenker
Cannondale 1 Flat, Carbon, 31.8mm, 9° back, 760mm
Vorbau
Cannondale 1, 7075 Alloy, 1-1/8″, 31.8, 7°
Griffe
Cannondale XC Silicone
Sattel
Prologo Dimension NDR, Tirox rails
Sattelstütze
Cannondale C1 Carbon, 27.2x400mm
Verbindung
Radsensoren
Cannondale Wheel Sensor
Extra
Extra 1
Tubeless Valves
