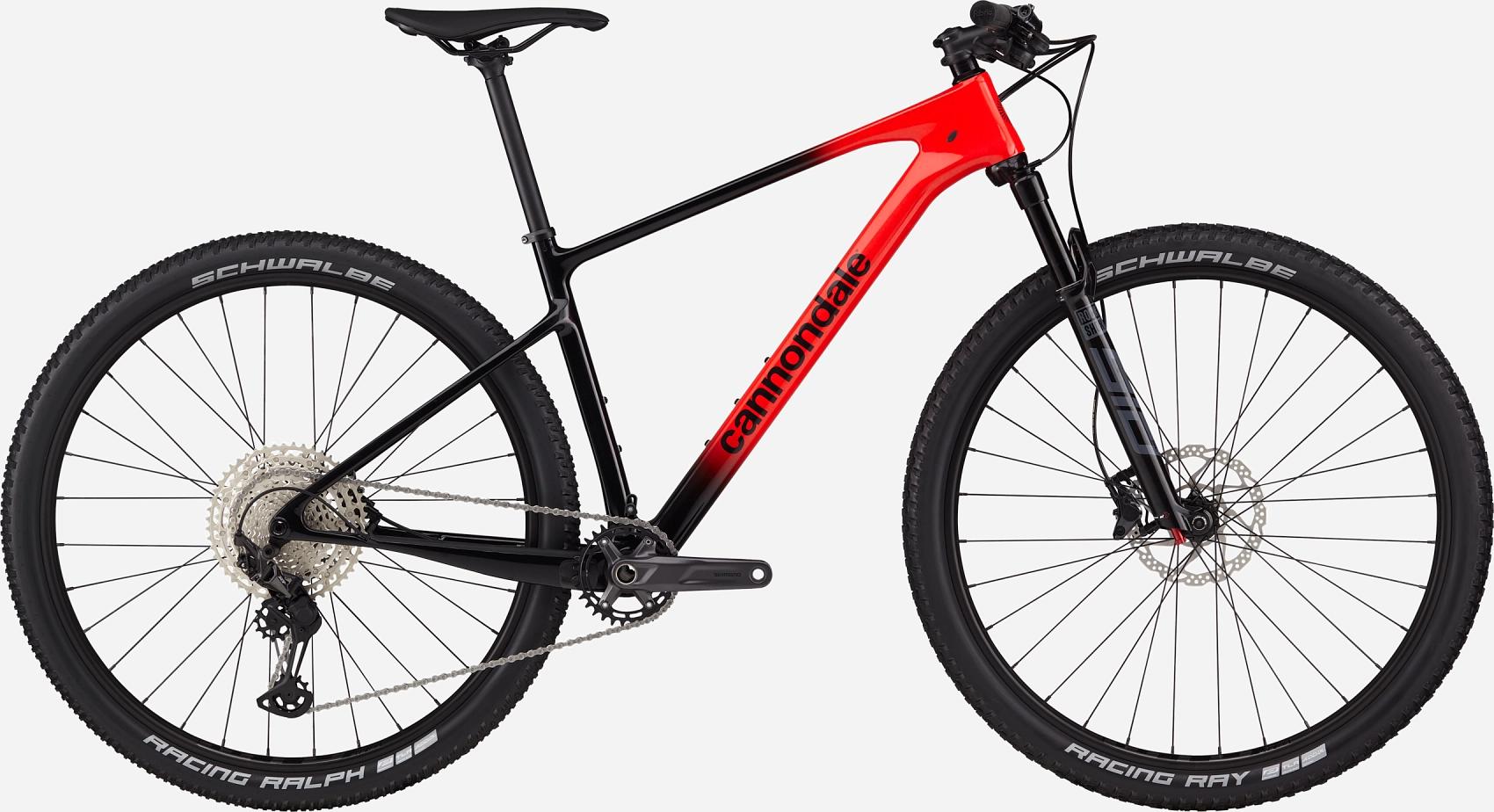

CANNONDALE SCALPEL HT CARBON 4

Details

•

  Plattform


  Scalpel HT


•

  Modell


  Scalpel HT Carbon 4


•

  Modellnummer


  C25401U

Rahmenset

•

  Rahmen


  Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger


•

  Gabel


  RockShox SID SL , 100mm, Debonair, remote lockout, 15x110mm thru-axle, tapered steerer, 44mm offset


•

  Steuersatz


  Integrated, 1-1/8 to 1.5″, sealed angular contact bearings

Antrieb

•

  Schaltwerk


  Shimano XT


•

  Schalthebel


  Shimano Deore M6100, 12-speed


•

  Kette


  Shimano Deore, 12-speed


•

  Kurbel


  Shimano M5121, 30T, 55mm chainline


•

  Kassette


  Shimano Deore M6100, 10-51, 12-speed


•

  Bottom Bracket


  Cannondale Alloy PressFit 30 – 24mm

Bremsen

•

  Bremsen


  Shimano MT501 hydraulic disc, 160/160mm RT54 rotors


•

  Bremshebel


  Shimano MT500 hydraulic disc

•

  Felgen


  WTB STX i23, 32h, tubeless ready


•

  Speichen


  DT Swiss Champion 2.0


•

  Reifen


  (F) Schwalbe Racing Ray EVO, 29 x 2.25″, Twinskin, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29 x 2.25″, SnakeSkin, Addix compound, tubeless ready


•

  Reifengröße


  2.25


•

  Reifendimension


  29


•

  Naben


  (F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle


•

  Vorderreifen


  Schwalbe Racing Ray EVO, 29 x 2.25″, Twinskin, tubeless ready


•

  Hinterreifen


  Schwalbe Racing Ray EVO, 29 x 2.25″, Twinskin, tubeless ready
