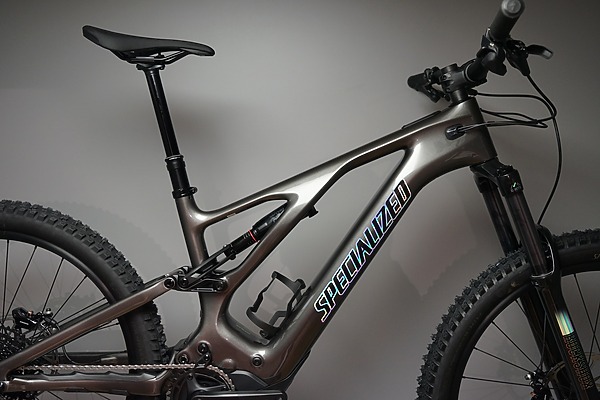

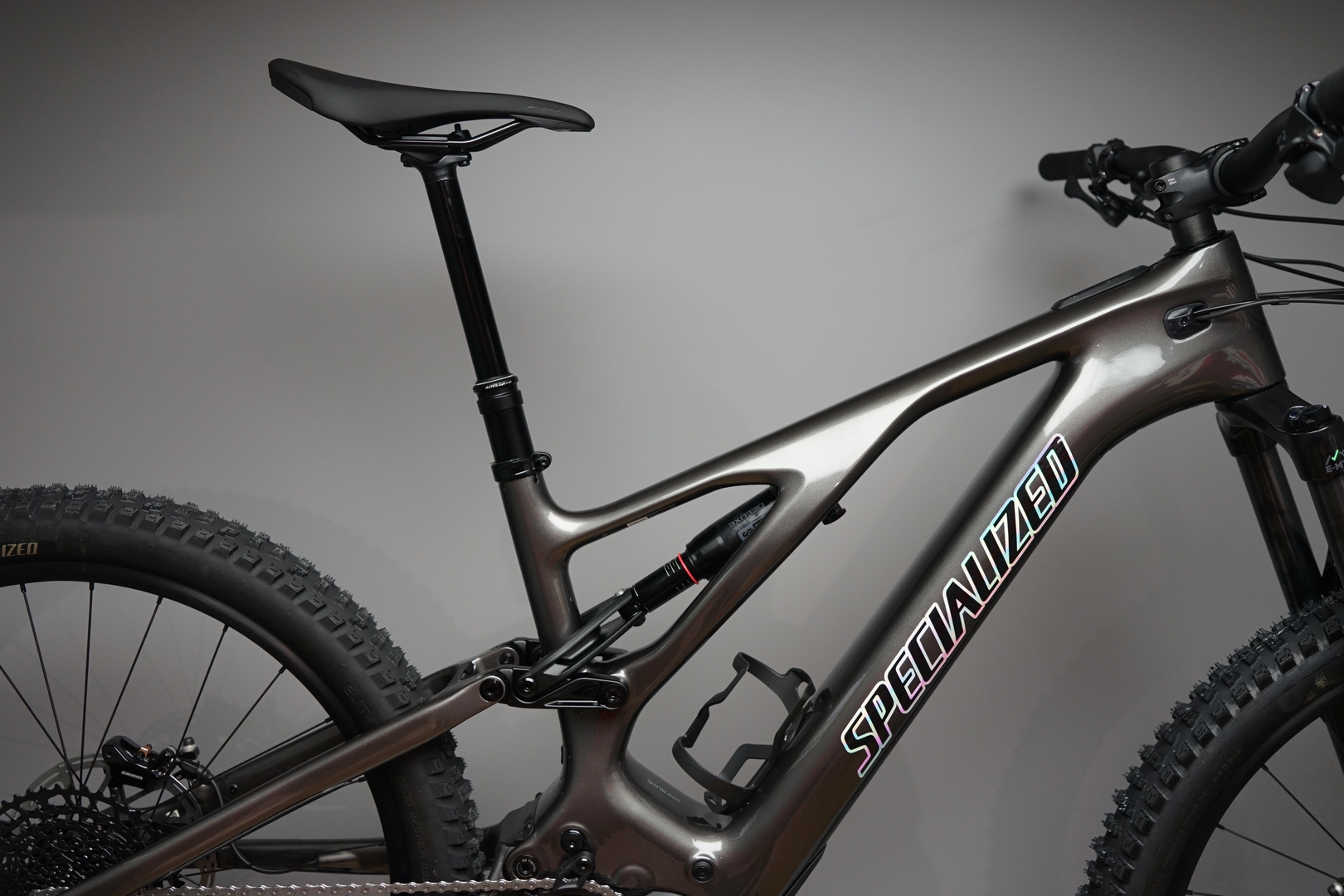

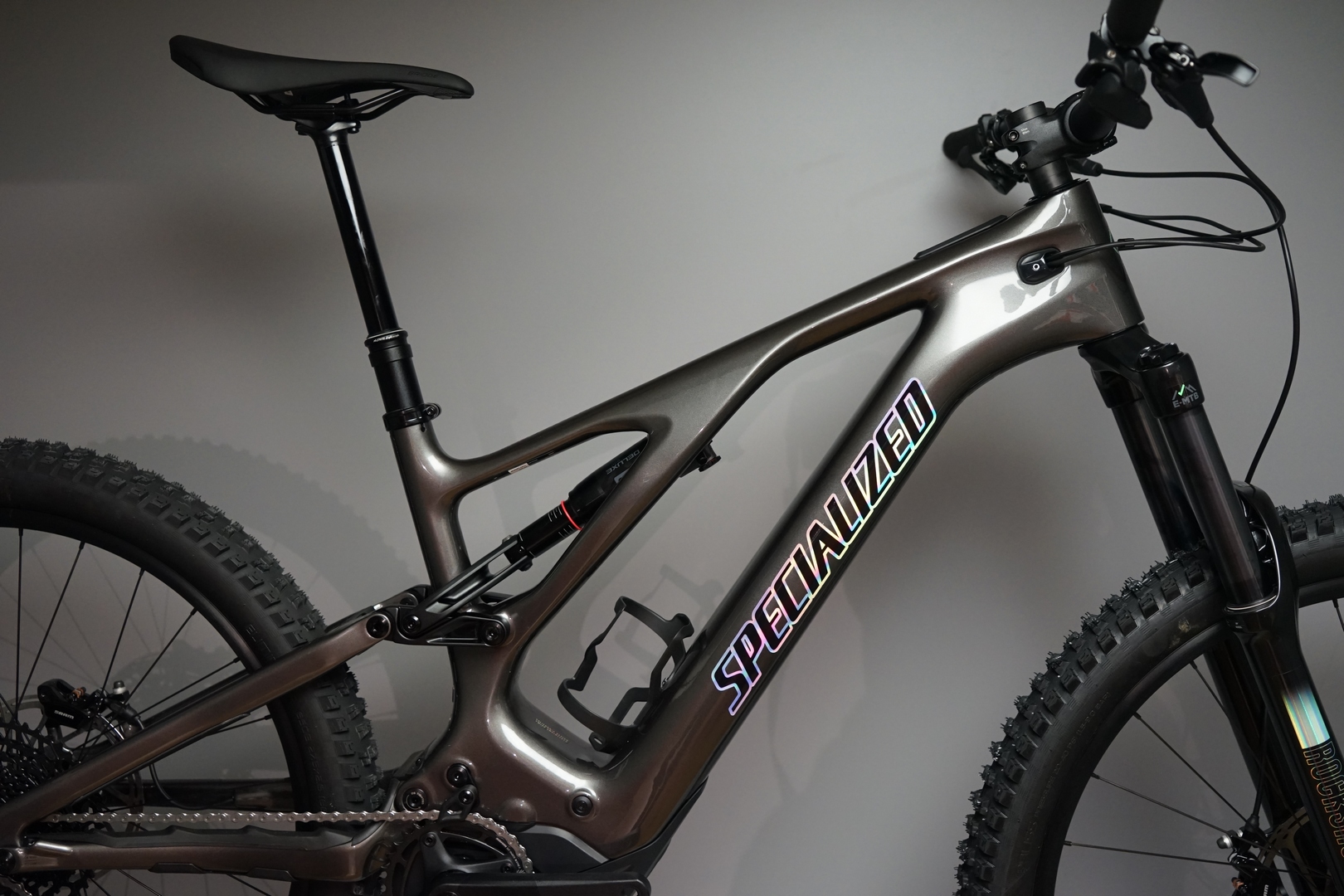

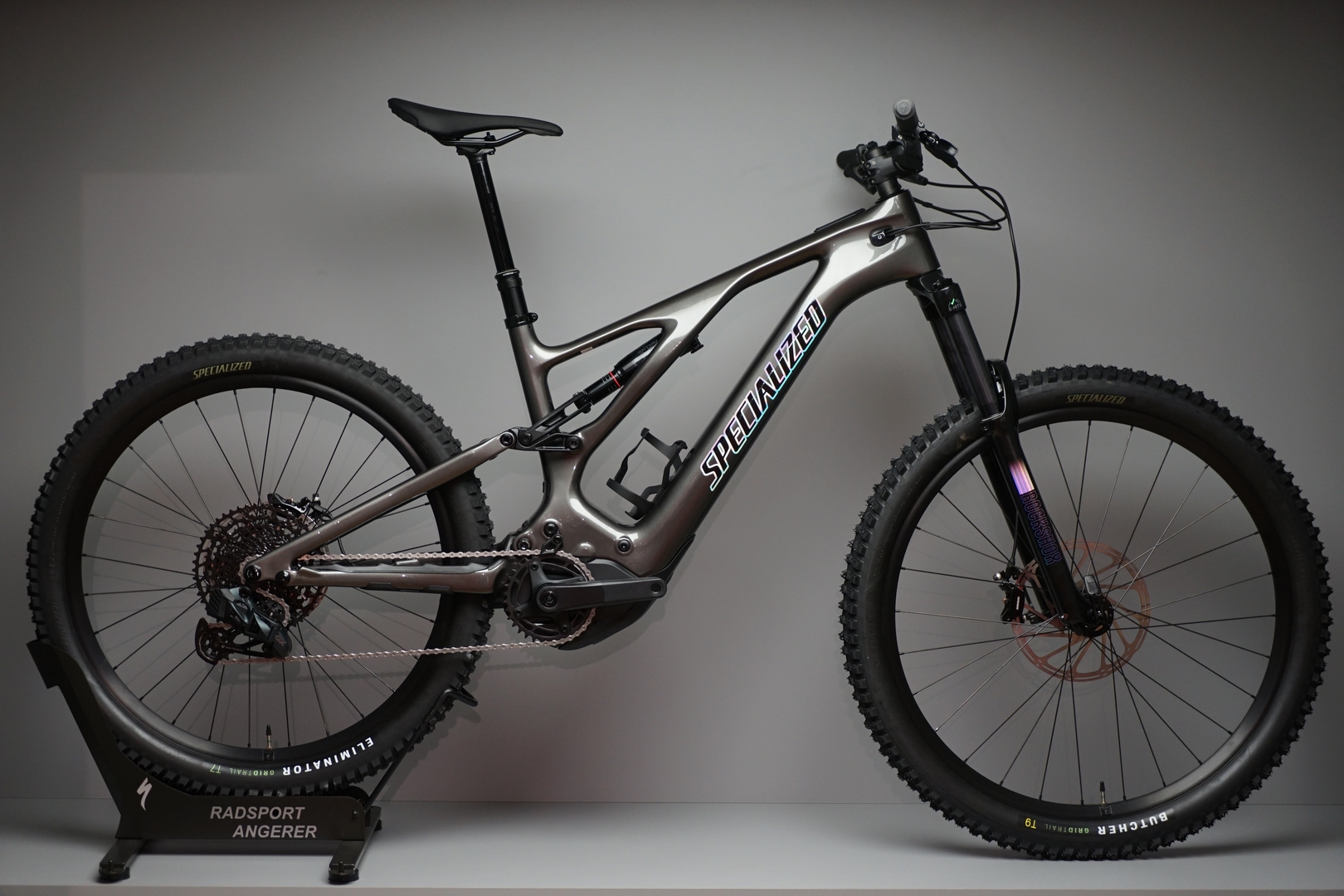

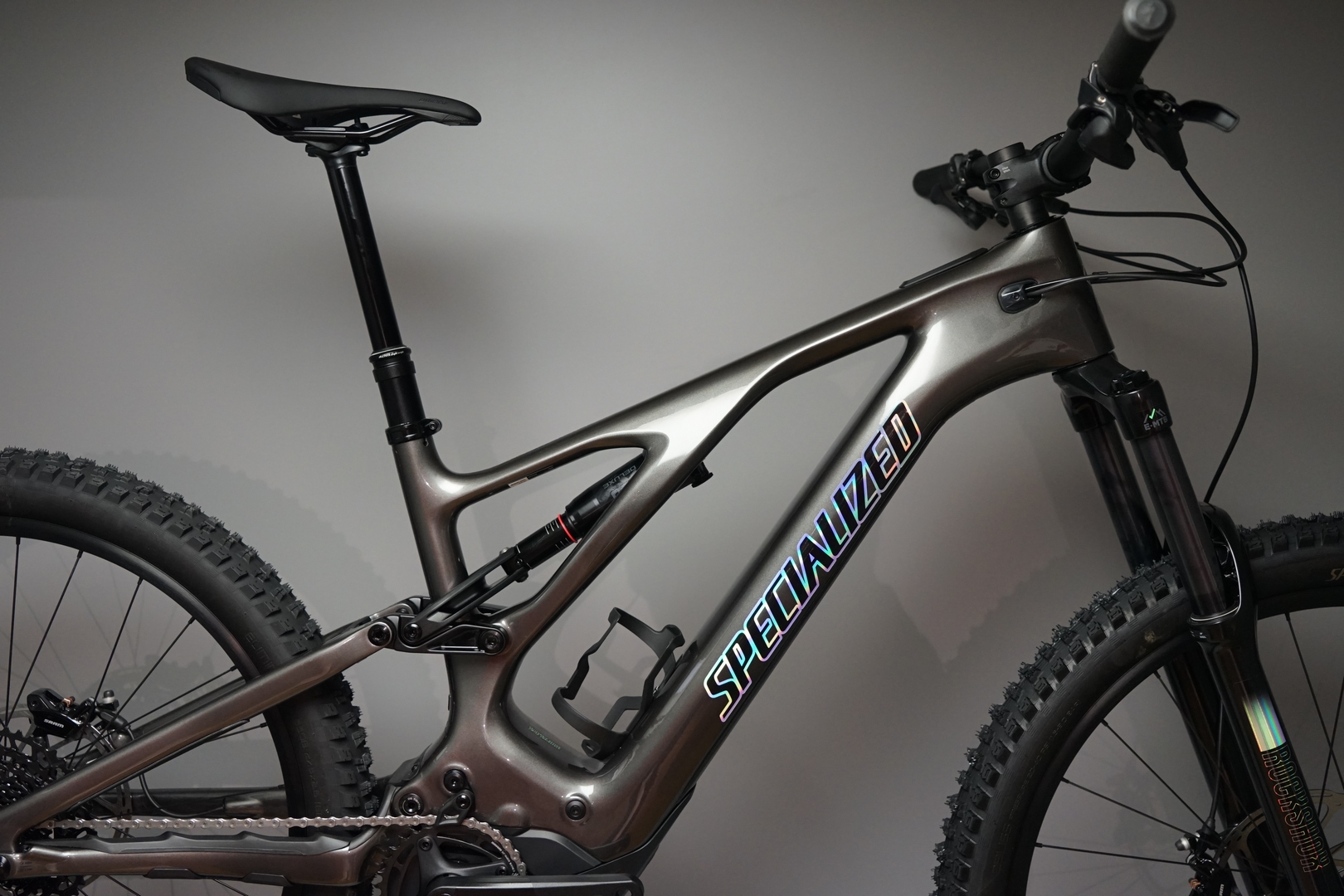

SPECIALIZED LEVO CARBON LIMITED

Seat Binder

Alloy, 38.6mm

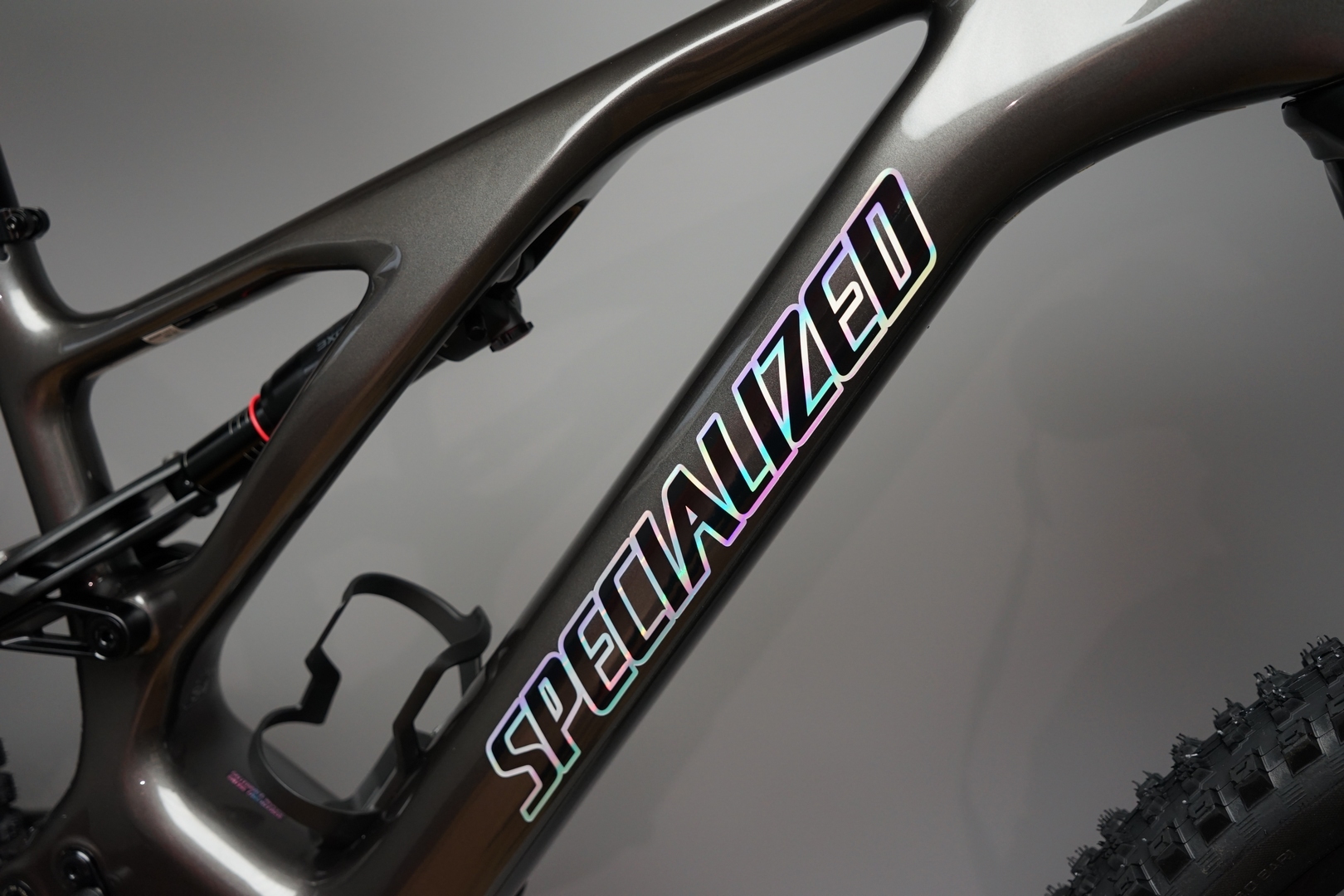

Frame

FACT 11m full carbon, 29″ front wheel, 27.5″ rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

Rear Shock

RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm

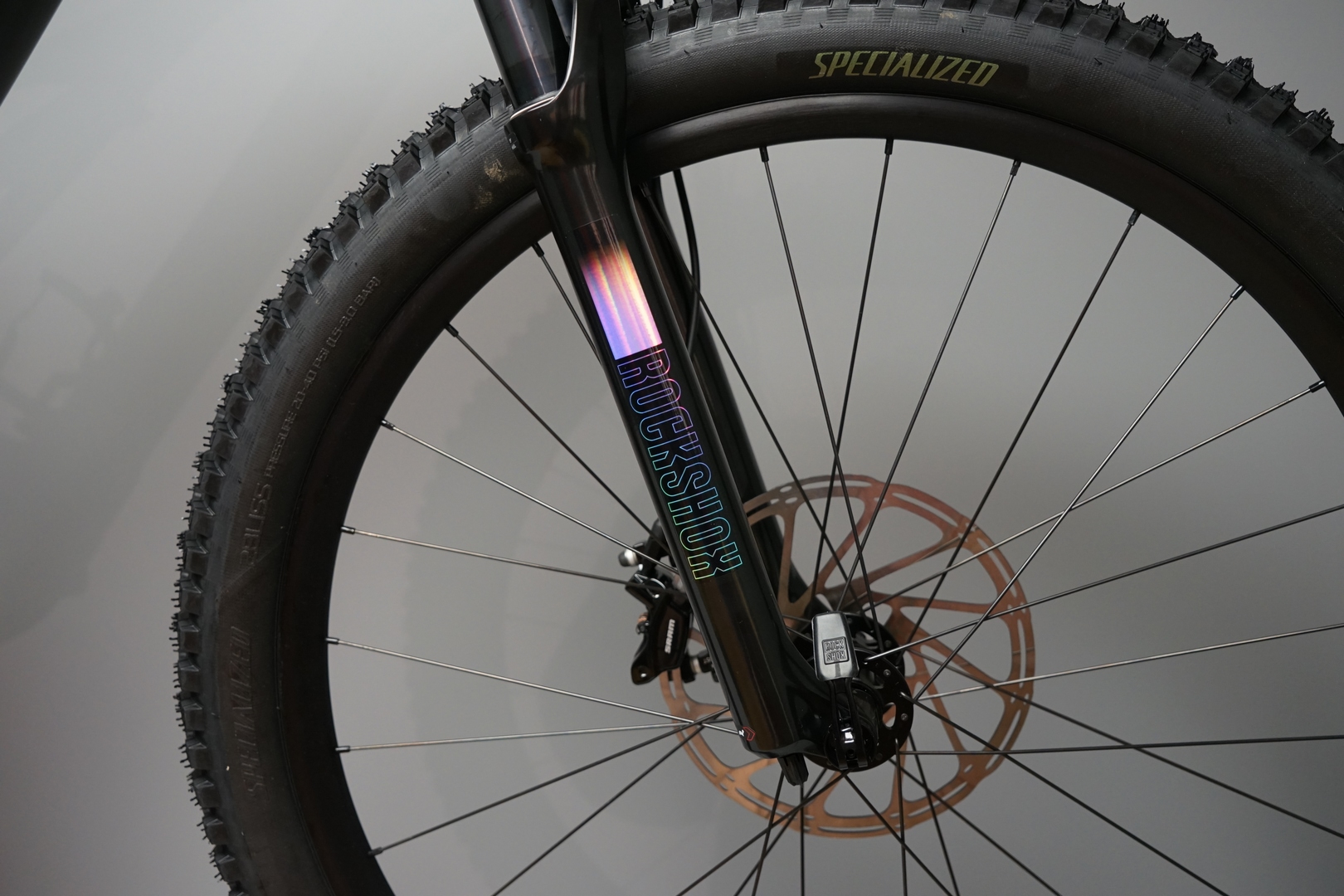

Fork

Rockshox 35 Silver, Turnkey damper, 29″, 44mm offset, S1: 150mm travel, S2-S2: 160mm travel

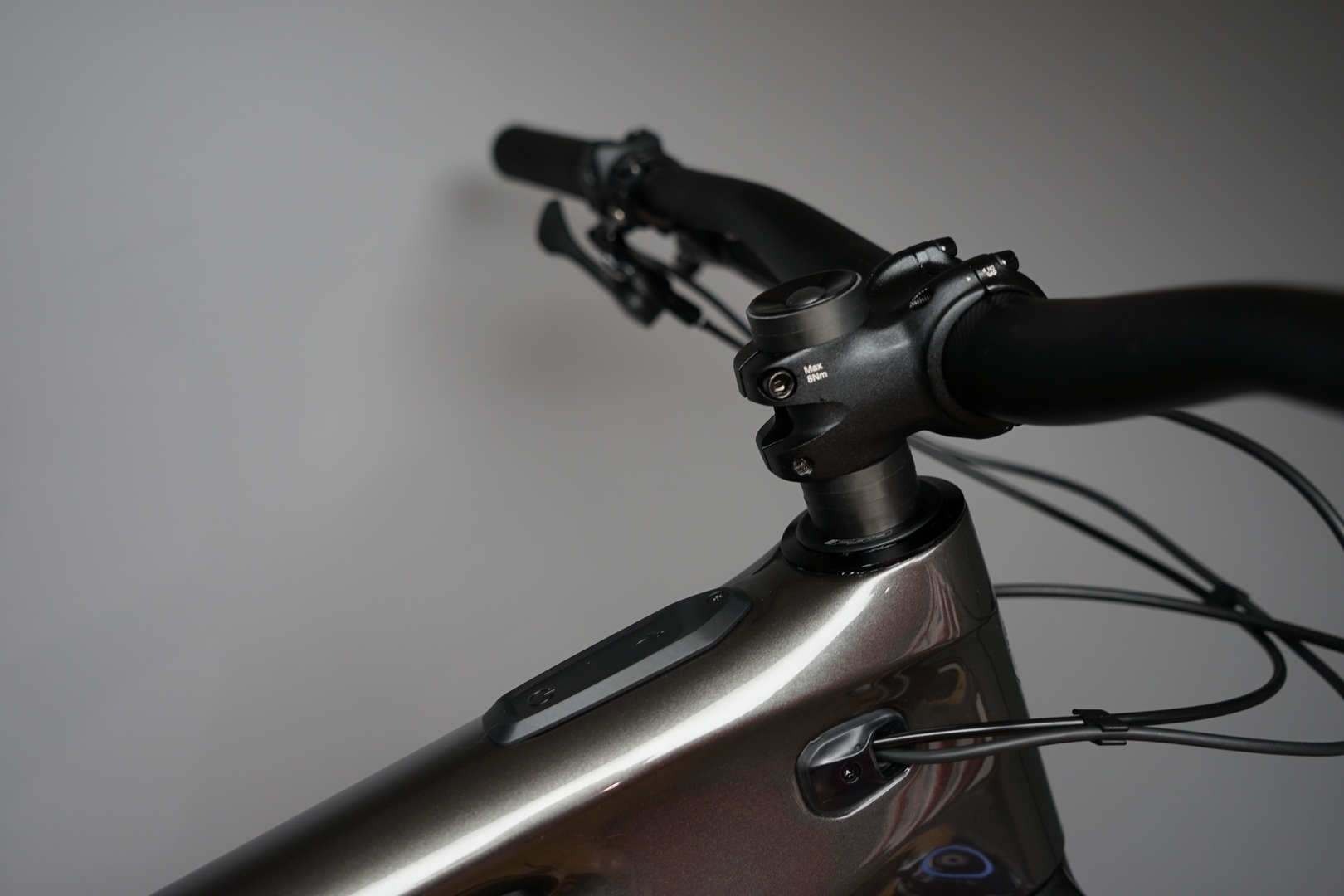

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Bridge Saddle, steel rails

Tape

Specialized Trail Grips

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

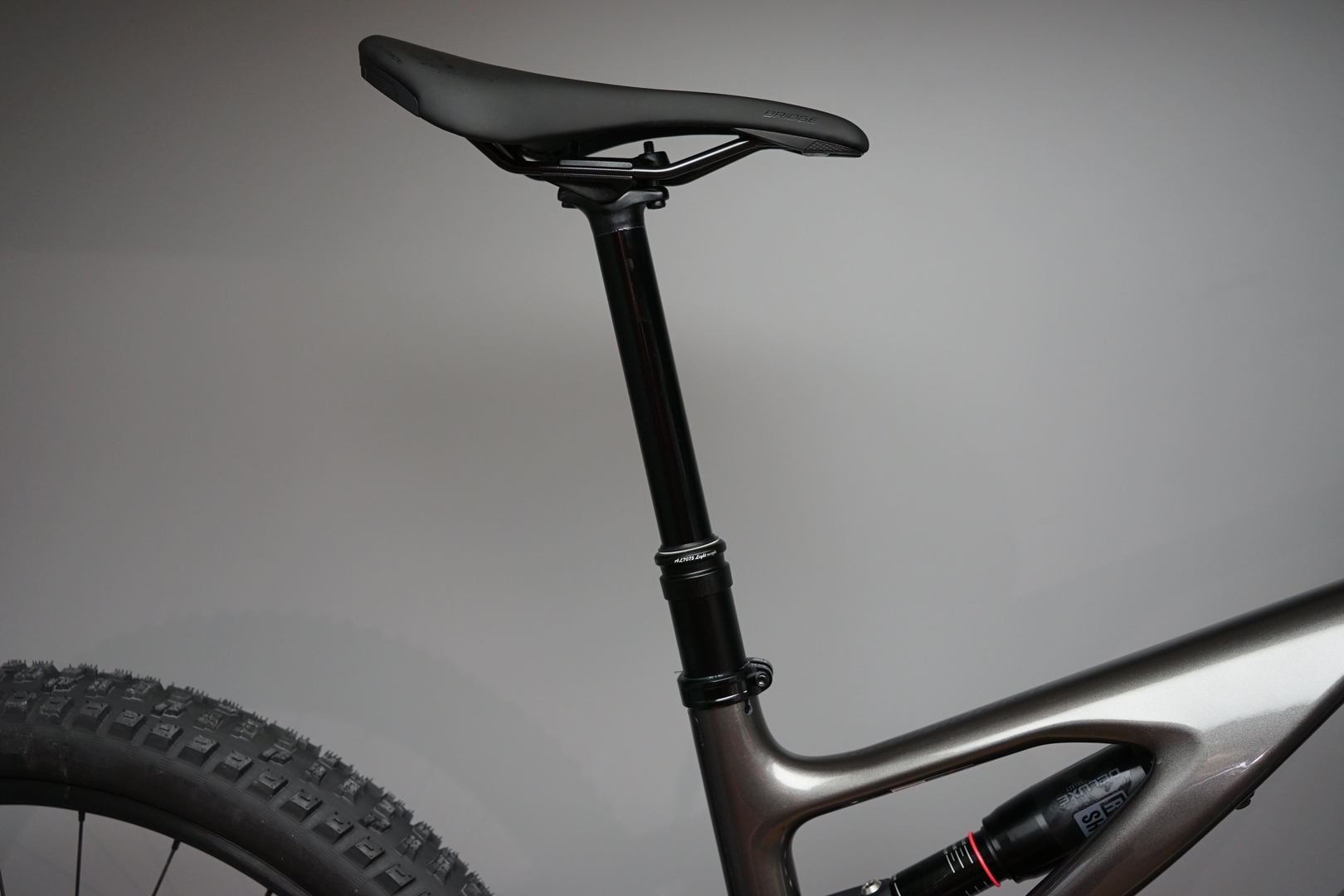

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

Rear Brake

SRAM Guide RE, 200mm

Front Brake

SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm

Crankset

Praxis forged M30, custom offset, 160mm

Chain

SRAM NX Eagle, 12-speed

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Shift Levers

SRAM GX AXS Eagle, 12-speed

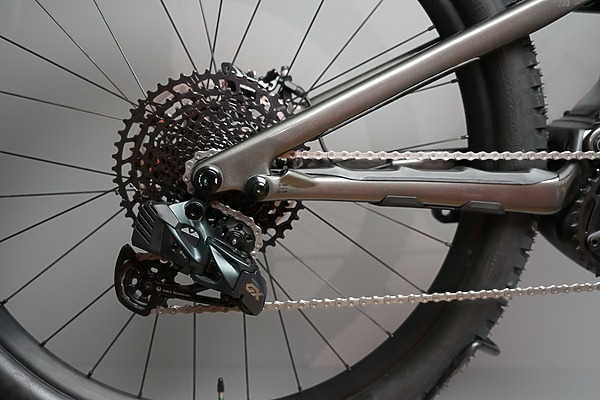

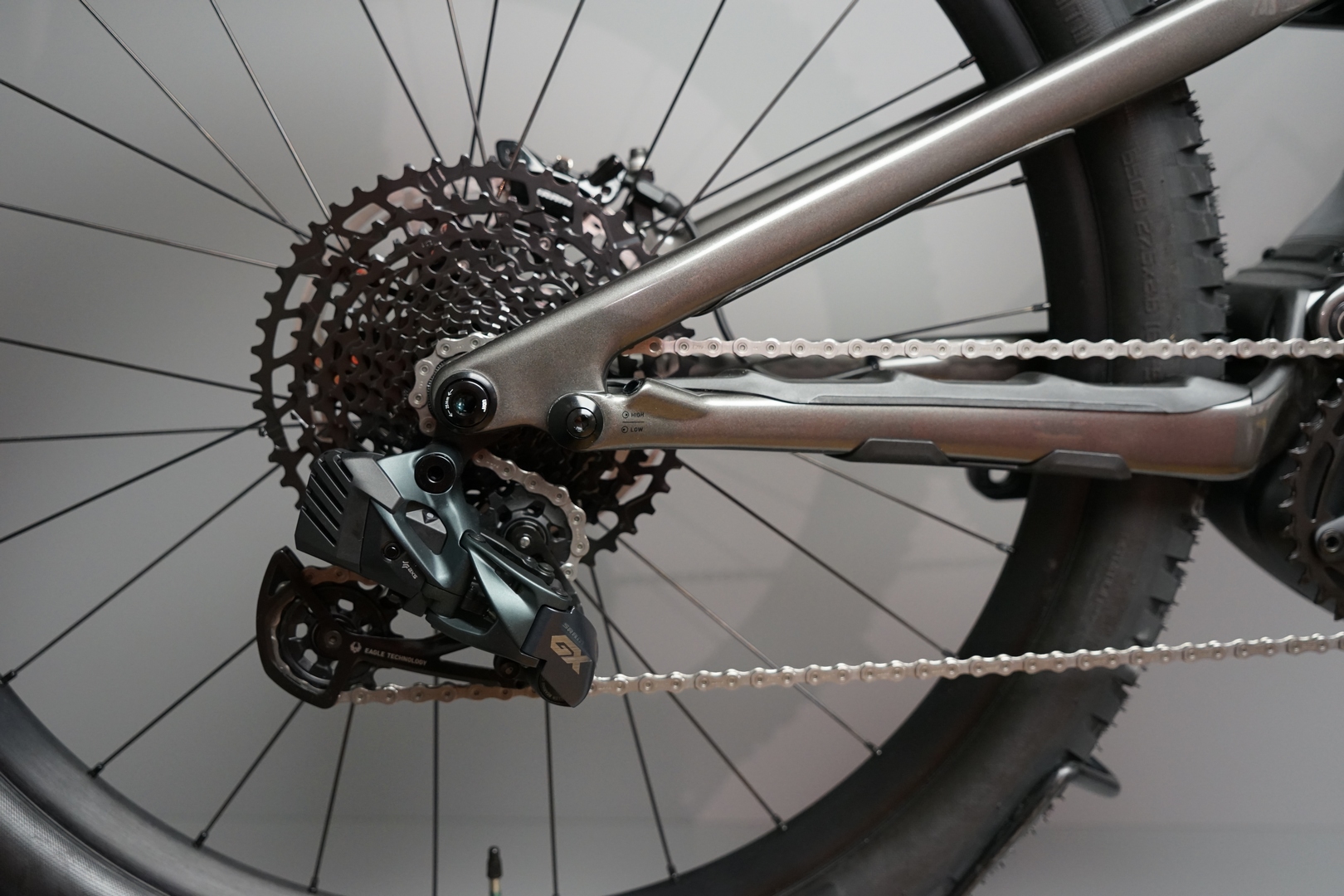

Rear Derailleur

SRAM GX AXS Eagle, 12-speed

Chainrings

SRAM X-Sync Eagle, 104 BCD, 32T, steel

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29×2.6″

Spokes

DT Swiss Industry

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5×2.6″

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Standard, Presta Valve

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor

Specialized 2.1 Custom Rx Trail Tuned Motor

Battery

Specialized M3-700, Integrated battery, 700Wh

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote

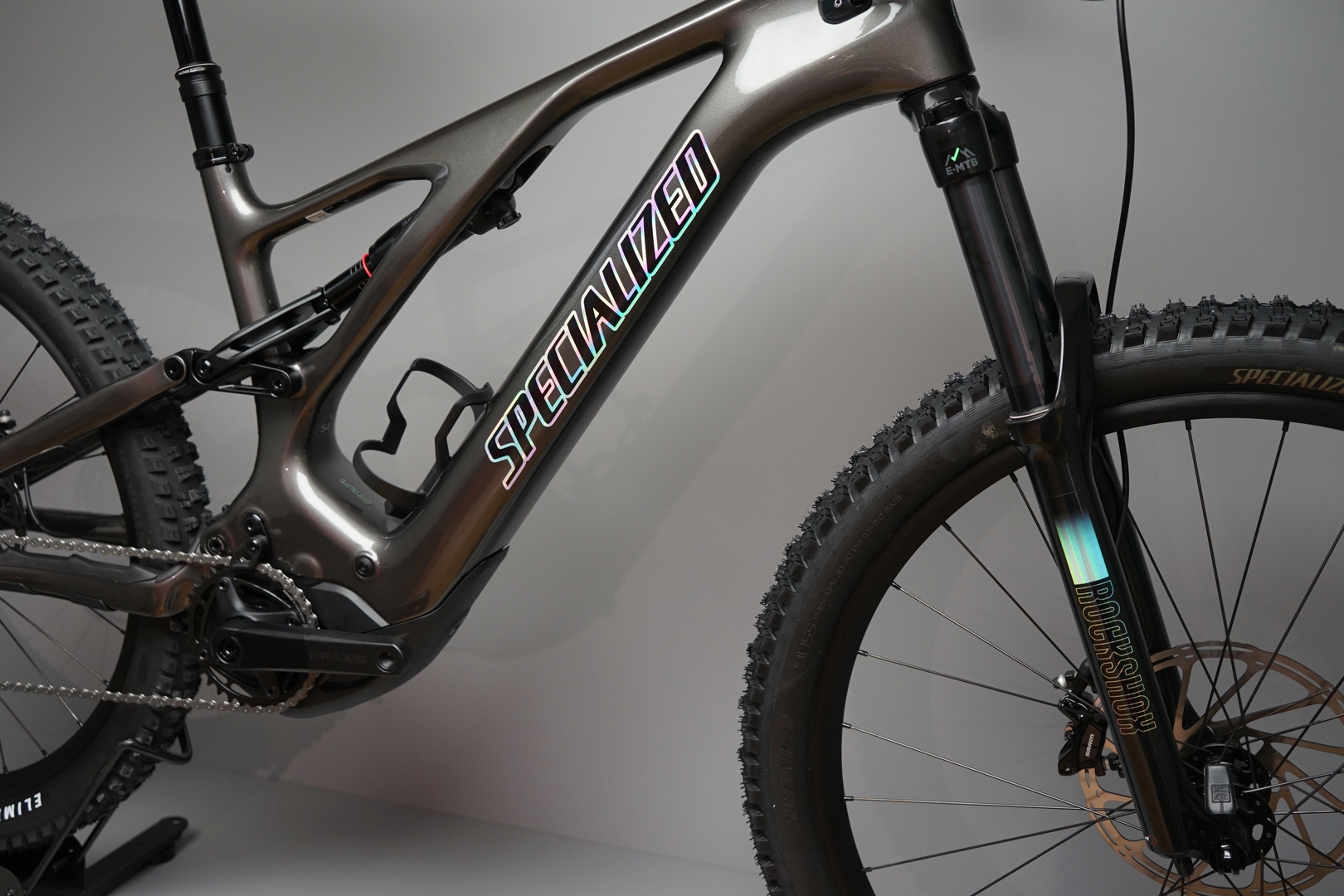

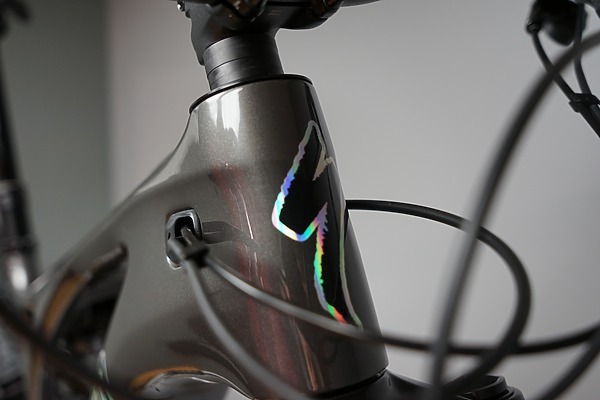

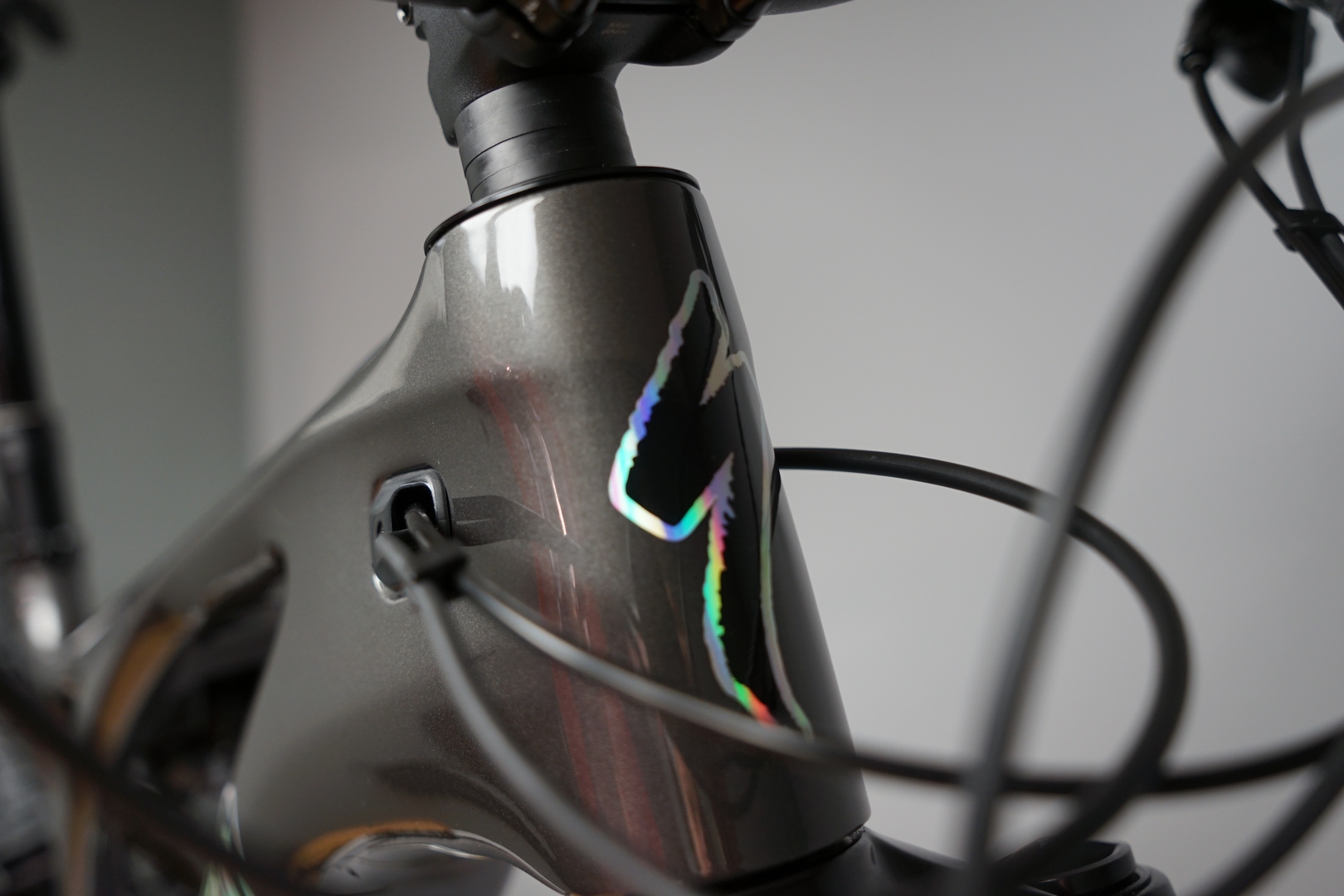

CUSTOM BEKLEBUNG
